High-pressure and low-pulse dual-piston tandem advection pump is made of stainless steel, which can achieve stable flow control without damper.

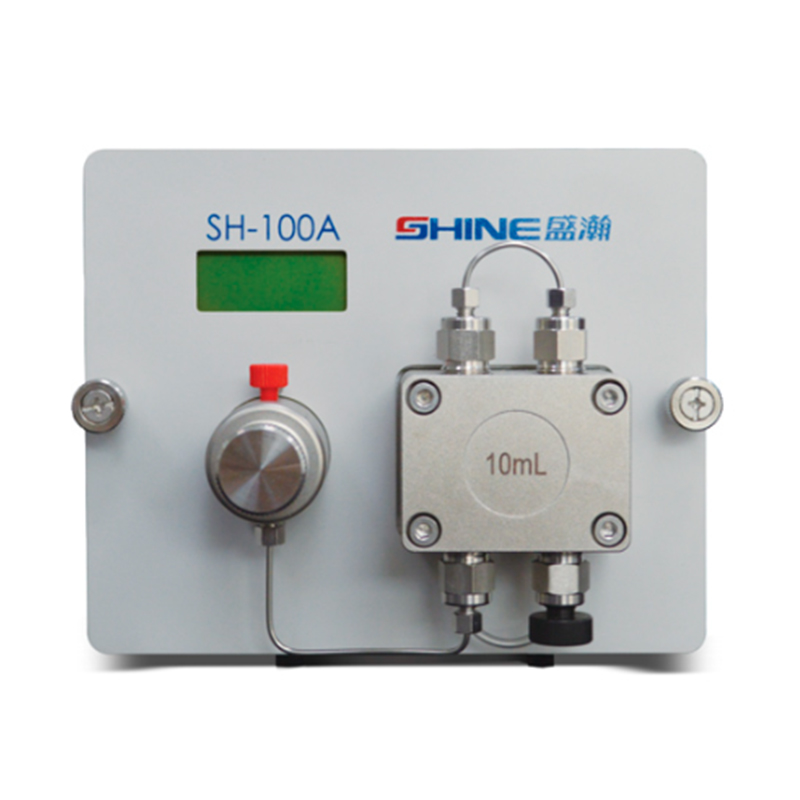

SH-100A High Pressure Infusion Pump
High-pressure and low-pulse dual-piston tandem advection pump is made of stainless steel, which can achieve stable flow control without damper. The product adopts 32-bit embedded microprocessor with ARM7 core, electronic pressure fluctuation suppression technology, and high-precision DC servo motor, to realize the combinatorial analysis mode of isocratic, binary, quaternary gradient and micro-analysis, which is suitable for trace analysis in scientific research and special industries.
Highlights
| Model | Material | Flow Range | Pressure Range | Flow Velocity Reproducibility | Transfusion Structure | Pipeline Specification | System Protection | Power Supply |
| SH-100A | Stainless steel | 0.001-9.999mL/min | 0-42MPa | ＜0.2% | Dual-piston, tandem | 1/16” | Maximum pressure setting protection | 24V DC |
High pressure resistance, small pulse fluctuations, and high flow rate accuracy.
The metal has low dissolution rate and good stability and can run for a long time.

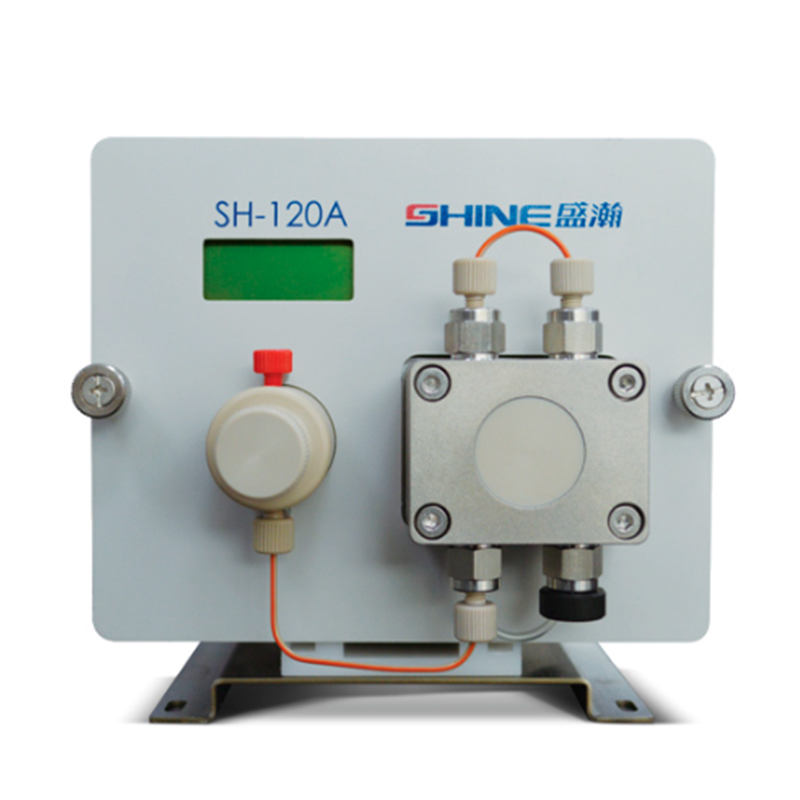

SH-120A High Pressure Infusion Pump
High-pressure and low-pulse dual-piston tandem advection pump is made of peek material, which can achieve stable flow control without damper. It can realize the combinatorial analysis mode of isocratic, binary, quaternary gradient and micro-analysis,and automatic piston rod cleaning and maintenance-free function, which is suitable for trace analysis in scientific research and special industries.
Highlights
| Model | Material | Flow Range | Pressure Range | Flow Velocity Reproducibility | Transfusion Structure | Pipeline Specification | System Protection | Power Supply |
| SH-120A | peek | 0.001-9.999mL/min | 0-36MPa | ＜0.1% | Dual-piston, tandem | 1/16” | Maximum pressure setting protection | 24V DC |
No metal dissolution will not cause metal contamination of the chromatographic column and extend the column life.
High pressure resistance, small pulse fluctuations, and high flow rate accuracy.
Good stability and can run for a long time.
