The ion chromatographic column independently developed by Qingdao Shenghan has a wide range of applications, strong versatility, and mass production.
The ion chromatographic column independently developed by Qingdao Shenghan has a wide range of applications, strong versatility, and mass production. IC Columns are compatible with Dionex, Metrohm, Shimadzu systems.
According to the separated ions, they can be divided into: anion column and cation column.
Commonly used anion chromatography columns
SH-AC-1 chromatographic column
A basic anion column,using carbonate system eluent,can simultaneously analyze 6 kinds of common anions: Cl-, Br-, NO2-, NO3-, H2PO4-, SO42-. With fast analysis speed and high cost performance,it is suitable for v environmental protection, cement and other industries.
SH-AC-3 chromatographic column
An anion column with high efficiency, using carbonate system eluent.It can simultaneously analyze 7 kinds of common anions (F-, Cl-, Br-, NO2-, NO3-, H2PO4-, SO42-), disinfection by-products (BrO3- ,ClO2- ,ClO3- ,dichloroacetic acid DCA, trichloroacetic acid TCA) and other anions, especially for the analysis of halogenates containing oxygen and is suitable for various industries such as disease control, food, environment, metallurgy, geology and so on.
SH-AC-4 chromatographic column
A universal anion column, using carbonate system eluent ,can simultaneously analyze F-, Cl-, Br-, NO2-, NO3-, H2PO4-, SO32-, SO42-, BrO3- . With low pressure and fast analysis speed, it is suitable for food, environment, metallurgy, geology and other industries.
SH-AC-5 chromatographic column
A highly hydrophilic anion chromatography column uses a hydroxide system leachate, which is mainly used to analyze seven common anions F-, Br-, Cl-, NO2-, NO3-, PO43-, and SO42-, which are characterized by good separation of water negative peaks and F-peaks.
Suitable for environmental, metallurgy and other industries.
SH-AC-11 chromatographic column
An anion column with high efficiency,using hydroxide system eluent.It can simultaneously analyze 7 kinds of common anions（F-, Cl-, Br-, NO2-, NO3-, PO43-, SO42-), disinfection by-products (BrO3- ,ClO2- ,ClO3- ,dichloroacetic acid DCA, trichloroacetic acid TCA) and other anions . With good peak shape, gradient elution, higher sensitivity and wider application scope, it is suitable for drinking natural mineral water, packaging drinking water, drinking water and other industries.
SH-AC-12A chromatographic column
A thin tube diameter anion chromatography column uses a hydroxide system leachate, which can simultaneously analyze common anions (F-, Br-, Cl-, NO2-, NO3-, PO43-, SO42-); disinfection by-products (BrO3-, ClO2-, ClO3-, dichloroacetic acid DCA, trichloroacetic acid TCA), and other anions. Its characteristics are that the tube diameter is thin, the flow rate is low, the signal response value is high, and the gradient leaching can be performed.
Suitable for trace analysis of power plant water, drinking natural mineral water, packaged drinking water, domestic drinking water and other industries.
SH-AC-12B chromatographic column
A thin tube diameter anion chromatography column uses a carbonate system leachate to analyze common anions (F-, Br-, Cl-, NO2-, NO3-, PO43-, SO42-); disinfection by-products (BrO3-, ClO2-, ClO3-, dichloroacetic acid DCA, trichloroacetic acid TCA) and other anions, which are characterized by thin tube diameter, low flow rate, and high signal response value.
Suitable for trace analysis of drinking natural mineral water, packaged drinking water, domestic drinking water and other industries.
SH-AC-12C chromatographic column
A special anion chromatography column was used for rapid analysis, and the carbonate system leachate was characterized by the analysis of seven common anions (F-, Br-, Cl-, NO2-, NO3-, H2PO4-, SO42-) within 15 minutes.
Suitable for industries such as public security and other requirements for rapid analysis.
Special anion chromatography column
SH-AC-6 chromatographic column
A special anion chromatography column for nitric acid digestion samples, using carbonate system leaching liquid. It is mainly used to analyze common anions in samples containing a large number of nitrates. It is characterized by long retention time of nitrates to avoid interference from high concentrations of nitrates on other ions.
Suitable for anion analysis of nitric acid digestion samples in cement and other industries.
SH-AC-7 chromatographic column
A special anion chromatography column was used for rapid analysis, and the carbonate system leachate was characterized by the ability to analyze 6 common anions (Br-, Cl-, NO2-, NO3-, H2PO4-, SO42-) within 5 minutes.
Suitable for industries such as well recording that require rapid analysis.
SH-AC-14 chromatographic column
S2- and CN-special chromatographic columns for analysis, used with an ampere detector.
Mainly used for identification of toxicity of hazardous waste leaching.
SH-AC-16 chromatographic column
A special chromatographic column for polyphosphate analysis, using hydroxide system leachate;
Mainly used to analyze polyphosphates in aquatic products.
SH-AC-17 chromatographic column
Special column for iodine ion analysis by conductance method; hydroxide system leachate can also be used to analyze SCN- and S2O32-plasmons.
It is mainly suitable for the analysis of I-, SCN-, S2O32- in environmental, solid waste and other industries.
SH-AC-18 chromatographic column
SO32-Special chromatographic column for analysis, adopts carbonate system, SO32- and SO42-separation high
Suitable for the separation and detection of SO32- and common anions (F-, Br-, Cl-, NO2-, NO3-, H2PO43-, SO42-) in the detection of environmental particulate matter and water quality.
SH-AC-19 chromatographic column
The thin tube diameter anion chromatography column uses a hydroxide system leachate. Its characteristics are that the tube diameter is thin, the flow rate is low, the high pressure resistance, and the signal response value are high. It can complete the analysis of seven common anions (F-, Br-, Cl-, NO2-, NO3-, H2PO4-, SO42-).
Suitable for trace analysis of drinking natural mineral water, packaged drinking water, domestic drinking water and other industries.
Universal cation chromatography column
SH-CC-3 chromatographic column
General cation chromatography columns are mainly used to analyze common cations (Li+, Na+, NH4+, K+, Mg2+, Ca2+). They are characterized by high sodium and ammonium separation and low magnesium and calcium tailing factors.
Suitable for common cation analysis in various industries such as the environment, water quality, medical care, food, etc.
SH-CC-4 chromatographic column
A multifunctional cation chromatography column, using methanesulfonic acid leachate, can analyze 6 cations Li+, Na+, NH4+, K+, Mg2+, and Ca2+. Its characteristics are low magnesium and calcium tailing factors and can tolerate 100% acetone.
Suitable for common cation analysis in various industries such as environment, water quality, medical care, and food.
SH-CC-3L chromatographic column
General cation chromatography columns are mainly used to detect common cations (Li+, Na+, NH4+, K+, Mg2+, Ca2+) and organic amines (methylamine, dimethylamine, trimethylamine). It has many types of ion detection and good resolution, which is suitable for high-concentration sample detection.
SH-CC-9 chromatographic column
The SH-CC-9 chromatography column is a universal cation chromatography column with excellent chromatography separation capabilities and can complete the analysis of conventional cationic lithium, sodium, ammonium, potassium, magnesium, calcium, methylamine, dimethylamine, trimethylamine and other organic amine samples. It is also suitable for the analysis of high concentration difference-to-sodium ammonium samples.
Highlights:
1. Special leachate selectivity: This type of chromatography column is sensitive to changes in the concentration of leachate and has different leachate selectivity under different leachate backgrounds;
2. Excellent physical properties such as acid and alkali resistance, organic solvent resistance and other physical properties;
3. Good separation degree and high column efficiency. This new cation chromatography column can not only complete the rapid separation of conventional cations, but also complete the separation of various organic amines, such as the analysis of methylamine (methylamine, dimethylamine, trimethylamine), ethanolamine (ethanolamine, diethanolamine, triethanolamine), and ethylamine samples.
Universal protection column

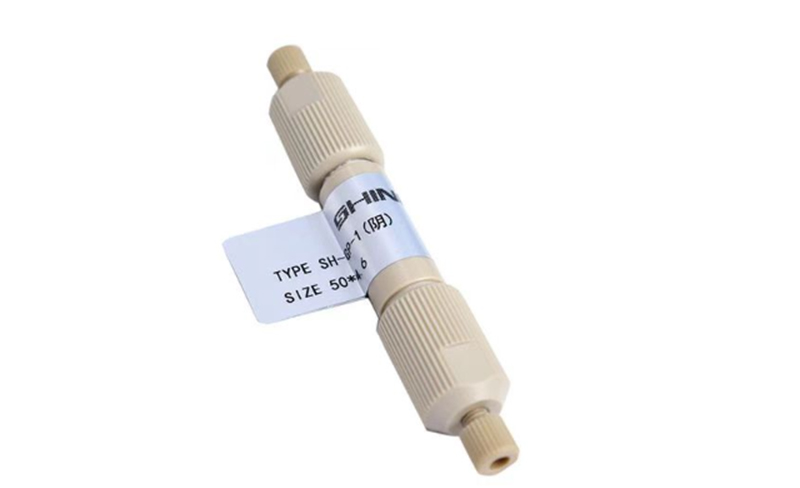

SH-G-1 type chromatographic column
Universal protection column; it can filter insoluble solid particles in mobile phase and samples online; it can also prevent contamination of the chromatographic column and extend the life of the chromatographic column.
SH-GP-1/2 chromatographic column
General-purpose protective column, made of peek material, can filter insoluble solid impurities in mobile phase and samples online, protect the chromatographic column, extend the service life, better acid and alkali resistance, and can be used for chromatographic columns of different pipe diameters.
PEEK Chromatography Column
SH-AP-1 column
The high-capacity chromatography column of peek column tube uses hydroxide system leachate to simultaneously analyze common anions (F-, Br-, Cl-, NO2-, NO3-, SO42-, SO32-, PO43-), disinfection by-products (BrO3-, ClO2-, ClO3-, dichloroacetic acid, trichloroacetic acid), and organic acids (formic acid, acetic acid, oxalic acid). High capacity and complete types of detection ions, suitable for third-party units to conduct multi-item testing.
SH-AP-2 chromatographic column
The high-capacity chromatography column of peek column tube uses carbonate system leaching liquid, which can simultaneously analyze common anions (F-, Br-, Cl-, NO2-, NO3-, SO42-, SO32-, PO43-) and disinfection by-products (BrO3-, ClO2-, ClO3-, dichloroacetic acid, trichloroacetic acid). High capacity and complete types of detection ions, suitable for third-party units to conduct multi-item testing.
SH-AP-3 chromatographic column
The rapid chromatography column of peek column tube uses carbonate system leachate to simultaneously analyze the detection of common anions (F-, Br-, Cl-, NO2-, NO3-, SO42-, SO32-, PO43-). The peak output speed is fast, suitable for units that complete a large number of detection tasks in a short time.
SH-AP-4 chromatographic column
It is a chromatographic column dedicated to separating weakly retained components. It uses hydroxide system leachate, peek material, has strong tolerance to acid, alkali and organic solvents, large column capacity and high resolution, and can be used for the analysis of negative ions and small molecule organic acids in complex collectives.
