The suppressor uses electrodes to electrolyze water to generate H+ and OH-, and under the combined action of the electric field and the ion exchange membrane.
The suppressor uses electrodes to electrolyze water to generate H+ and OH-, and under the combined action of the electric field and the ion exchange membrane, it realizes ion directed migration and exchange, which can reduce the background conductivity and improve the sensitivity of the ions to be measured so that the "counter ions" in the sample enter the waste liquid.
Self-regenerating Electrolytic Micro-membrane Suppressor
With advanced continuous regenerative membrane electric suppression technology, it doesn't need add acid or alkali to regenerate;
High suppression capacity, low background conductance, low noise, stable baseline and maintenance free;
Anti pollution, high pressure resistance and long life;
Compatible with 100% organic solvents;
It can match various types of ion chromatography products;
The signal line is connected by aeronautical connector, which is convenient for disassembly and assembly.
Highlights:
| Model | Type | Current | Eluent | Pressure Resistance | PH Range | Dead Volume |
| SHY-A-7 | Anion | 0-300mA | CO32-/HCO3-/OH- | 6MPa | 0-14 | ＜40μL |
| SHY-C-5 | Cation | 0-300mA | MSA | 6MPa | 0-14 | ＜50μL |

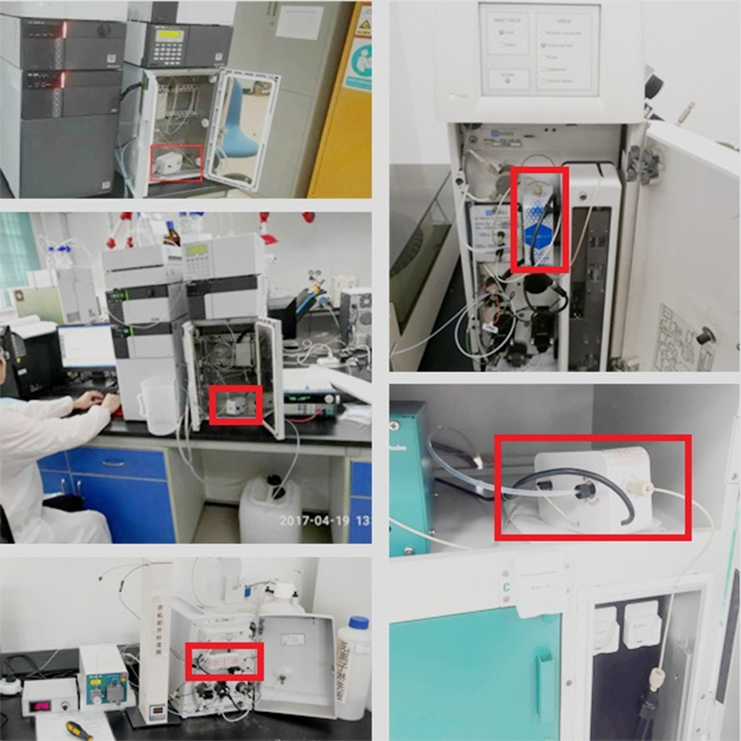

The SHINE suppressor is compatible with Dionex, Metrohm, Shimadzu ,Waters systems
