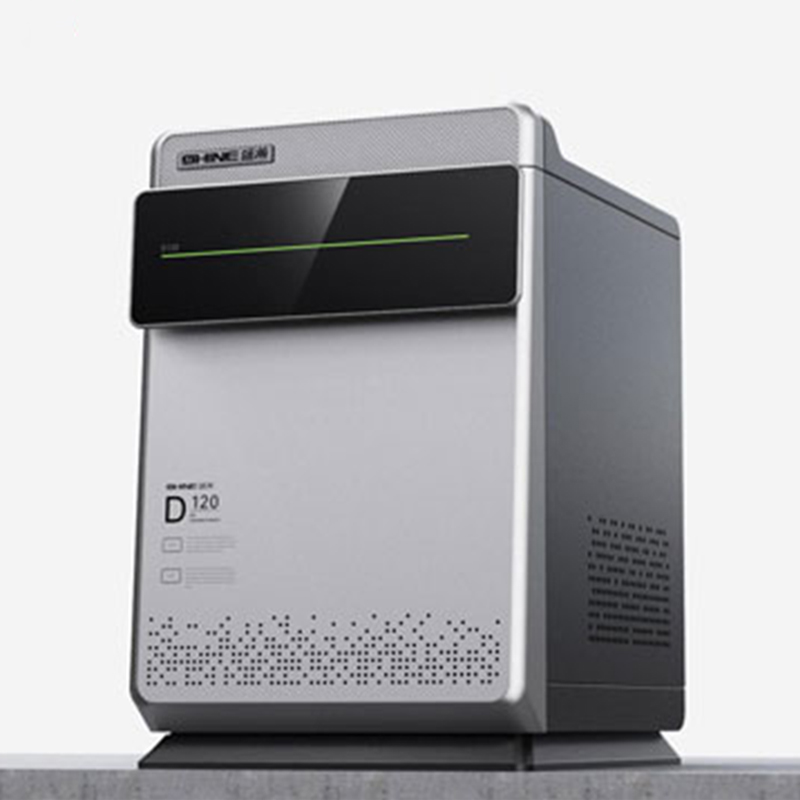

The CIC-D120+ ion chromatograph is a new generation of ion chromatograph analysis platform upgraded based on CIC-D120. It was launched in 2023 and is positioned as a cost-effective intelligent ion chromatograph.
The CIC-D120+ ion chromatograph is a new generation of ion chromatograph analysis platform upgraded based on CIC-D120. It was launched in 2023 and is positioned as a cost-effective intelligent ion chromatograph, suitable for conventional ion and complex sample detection in the fields of environmental monitoring, food quality inspection, electronic and chemical engineering, etc.
Core technology upgrade and testing mechanism
1. Fully plastic flow path system and automatic range technology
- Full PEEK material flow path: Compared with CIC-D120, CIC-D120+ further optimizes the flow path design, adopts full PEEK material, which is resistant to strong acids and alkalis (pH 0-14) and 100% reverse phase organic solvents, avoids metal ion contamination, and is especially suitable for trace heavy metal detection (such as Cl⁻ in electronic grade chemicals). For example, when analyzing semiconductor wafer cleaning fluid, the all-plastic flow path ensures detection limits as low as 0.1 ppb.
- Automatic range conductivity detection: Traditional conductivity detectors need to manually switch ranges, while CIC-D120+ uses automatic range technology. One injection can simultaneously detect ion concentrations of 4 orders of magnitude difference (such as Li⁺ of 0.1 ppb and Na⁺ of 50 ppm). The digital signal output is directly compatible with different concentration ranges, reducing manual operation errors.
2. Intelligent temperature control and separation technology
- Built-in cyclic three-dimensional constant temperature column thermostat: adopts frequency conversion control circulating air heating mode, temperature control range +5-60℃, accuracy ±0.1℃, and the heating time is shortened to within 30 minutes, ensuring that the separation repeatability of complex samples (such as lactose in dairy products) at different temperatures is better than 1%.
- Chromatographic column chip identification: Standard SH series ion chromatography columns (such as SH-AP-1 anion column and SH-C cation columns) are equipped. The column model is automatically identified through the chip and matched with the optimal separation conditions to avoid errors in manual parameter setting. For example, after replacing the chromatographic column, the system automatically loads preset leachate gradient and temperature parameters, saving method development time.
CIC-D120+ ion chromatography machine is the third generation of SHINE basic intelligent product. The design of the instrument adopts a new concept from appearance to internal structure . It is a fully plasticized reagent-free product, which can be used in many fields such as environmental protection, petrochemical, drinking water, food detection and other conventional and trace detection.
CIC-D120+ highlights:
(1)It has the functions of pressure alarm, liquid leakage alarm and eluent alarm to protect the safe operation of the instrument in real time, alarm and shut down when liquid leakage occurs.
(2)The key components of the suppressor and column have real-time monitoring function to ensure the timely replacement of consumables and ensure the stability and accuracy of the instrument operation.
(3)The gas-liquid separator can effectively remove the influence of bubbles on the test.
(4)Standard equipped with SHINE high-performance autosampler, more accurate injection control.
(5) The instrument can be started up in advance according to the setting, and the operator can test directly at the unit.
(6) The software has the baseline deduction function and filtering algorithm to effectively remove the baseline drift caused by gradient elution, and the sample response is more obvious.
(7) Auto-range conductivity detector, ppb-ppm concentration range signal is directly expanded, without adjusting the range.
Company Introduction
SHINE has over 90 independent intellectual property rights, including patents and software copyrights, for all its products. It has participated in more than 50 national, industry, and group standards related to IC and is the first domestic enterprise to mass produce IC columns. SHINE's product performance is close to the international advanced level and can achieve domestic substitution in the vast majority of fields.
At present, SHINE has been ranked first in the domestic brand market share for 8 consecutive years and has exported to more than 80 countries and regions around the world, including the United States, Germany, Japan, and Singapore.
