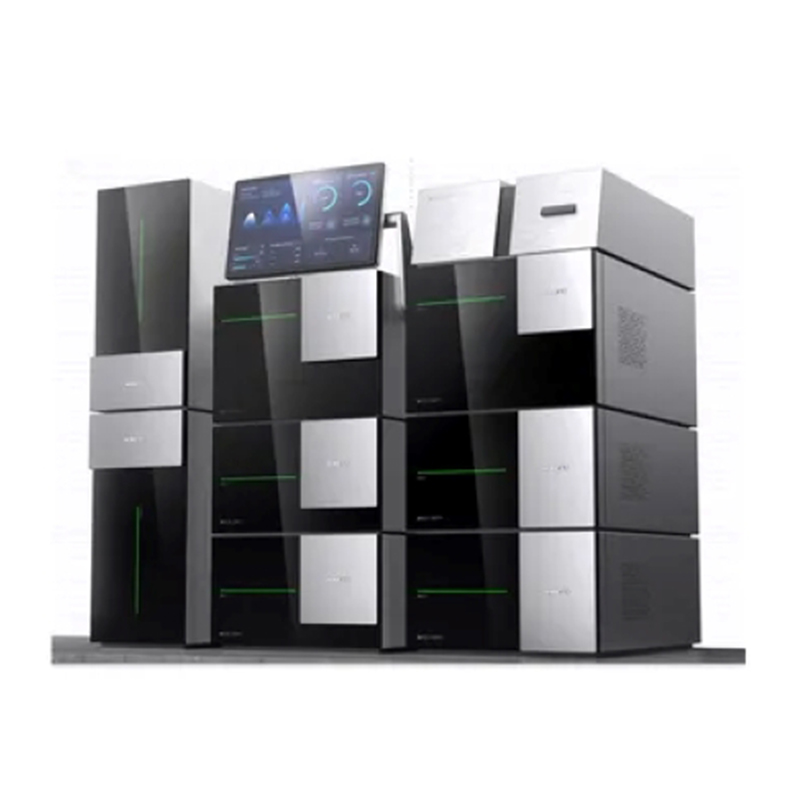

SH-CIC3200 on-line combustion ion chromatograph, which can perfectly replace manual oxygen bomb combustion, has better accuracy and repeatability.
SH-CIC3200 on-line combustion ion chromatograph, which can perfectly replace manual oxygen bomb combustion, has better accuracy and repeatability. The combustion furnace can be set to 5 different temperatures, with gradient heating, prevent sample splashing. Equipped with Parcel cooling, It can quickly start different temperature programs and automatically retain samples for traceability and retesting. It is the best choice for solid sample detection.
SH-CIC3200 highlights:
Automatic sampling: 23-position disc automatic sampler, easy to use and excellent reliability; The cup type sampling boat is more convenient for adding samples, which can eFfectively avoid accidents such as gas blowing into the combustion tube;
Automatic sample retention: there is a disc-type automatic sample retention device on the top of the absorption unit, which corresponds to the position of the sample injector one by one. After absorption, the sample will be automatically sucked into the sample retention bottle to meet the requirements of retest and traceability;
Oxygen purging design: the front of the combustion pipe is equipped with purging oxygen pipeline, which can blow the unburned ash back to the combustion area to ensure full combustion;
Enrichment function: it can connect the enrichment column to enrich the ions to be tested and improve the accuracy of the detection results;
Base elimination: can effectively eliminate the interference of hydrogen peroxide base for analysis;
Peltier cooling module: the minimum temperature can reach 5 ℃, which can fully cool the high-temperature gas and increase the absorption efficiency.
The SH-CIC3200 integrates a combustion furnace, absorption unit and ion chromatography unit, which can detect total organic fluorine, chlorine, bromine and iodine in samples online. This instrument is not only suitable for fluoride, but also for detecting other halogens at the same time. It is suitable for the environment, consumer goods, semiconductors and other fields. Especially for the detection of PFAS (perfluoro and polyfluoro compounds), SH-CIC3200 can decompose samples through combustion and convert organic fluorine into inorganic fluorine ions, thereby achieving trace detection, with the detection limit as low as ppb level.
In the field of ion chromatography, SHINE has developed five series including laboratory desktop, portable, online, customized, and combined ion chromatography equipment, more than 30 models of ion chromatography equipment, and over 100 consumables products, which are widely used in 127 fields such as food, water quality, agriculture, customs, and environment, serving more than 7000 customers.
SHINE has over 90 independent intellectual property rights, including patents and software copyrights, for all its products. It has participated in more than 50 national, industry, and group standards related to IC and is the first domestic enterprise to mass produce IC columns. SHINE's product performance is close to the international advanced level and can achieve domestic substitution in the vast majority of fields.
At present, SHINE has been ranked first in the domestic brand market share for 8 consecutive years and has exported to more than 80 countries and regions around the world, including the United States, Germany, Japan, and Singapore.
FAQ
Can you can design the equipment according to our size?
Yes.
How many years have your company made this kind of equipment?
Our company has been engaged in manufacturing this kind of equipment for 25 years.
Which certificate do you have for your equipment?
Our equipment has CE certification.
You have sales target finished amount requirement to the distributor?
Depending on the situation.
Can the equipment be installed under hot weather?
The equipment is generally installed at a laboratory temperature ranging from 5 to 30 degrees Celsius. Otherwise, it will affect the installation effect.
