Lab Water Purification Equipment

P series lab water purification equipment, using the innovative intelligent human-computer interactive control system and 7-inch colorful capacitive touch screen.

Product Description

P series lab water purification equipment, using the innovative intelligent human-computer interactive control system and 7-inch colorful capacitive touch screen, integrating functions of Internet of Things (IOT) and cloud platform, embedding new purification cartridges with patented structure and DI ion exchange cartridges with larger capacity, equipping with powerful HiDis water dispenser arm, can meet your critical and professional application requirements of lab pure water.



Application Area

HPLC,UPLC,LC-MS

ICP-MS,ICP-AES,AAS,GC-MS

MALDI-TOF-MS,IC,TOC analysis

Electrochemical, spectrophotometric determination

Preparation of microbial media and reagents

Cell culture, PCR, IVF

Protein purification, electrophoresis, biochemistry

Proteomics, genomics, immunoassay



Highlights

Advanced control system: adopts an innovatively developed intelligent human-computer interactive control system and a 7-inch LCD color capacitive screen, integrating the Internet of Things (IOT) and cloud platform functions, making operation more convenient and intelligent. Users can intuitively understand the operating status of the system through the screen, and can also realize remote monitoring and management.



High-quality purification technology: The purification column with a new technical structure and a large-capacity DI ion exchange purification unit can effectively remove various impurities, ions, etc. in the water, ensuring the production of high-purity ultrapure water. Using pure water such as distilled water as the water source, ultrapure water with a resistivity of up to 18.2MΩ.cm can be produced. The quality of ultrapure water completely meets or exceeds the water quality standards specified by ASTM D1193-06, GB/T 11446.1-2013, GB/T 33087-2016, GB/T 6682-2008, CP, EP, USP, JP, CAP, CLSI, etc.



Efficient water production capacity: The water production capacity is up to 2.0 liters/min, which can meet the laboratory's large demand for ultrapure water, and can quickly provide the high-purity water required for experiments and improve experimental efficiency.



Equipped with high-quality water withdrawal arms: equipped with a powerful HiDis water withdrawal arms, making water withdrawal more flexible and convenient. It can be fixed on the bracket at any direction at 360 degrees horizontally. A single host can be connected to up to 5 sets of HiDis water withdrawal arms, which can fully cover the water use range of the laboratory bench and meet the water withdrawal needs of different locations.

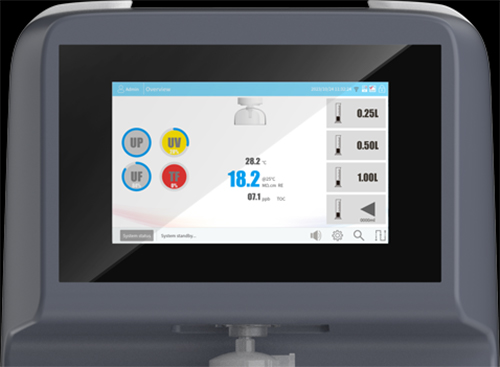

All new intelligent human-computer
interactive control system

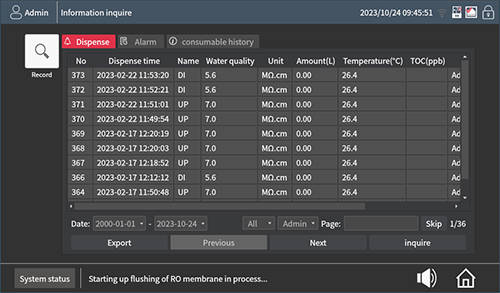

Traceable comprehensive data management

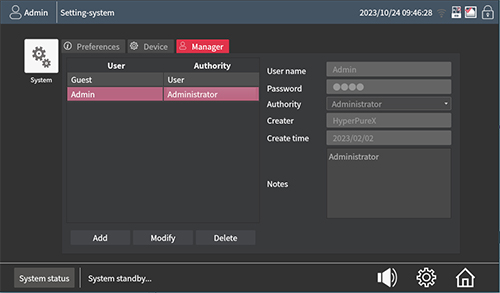

Sharing mode of multi-user management

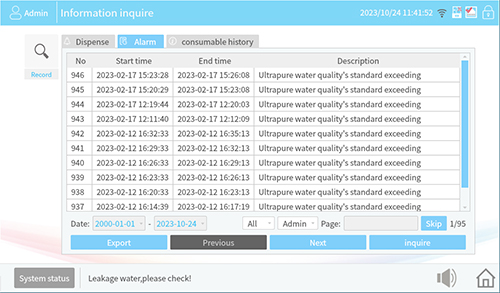

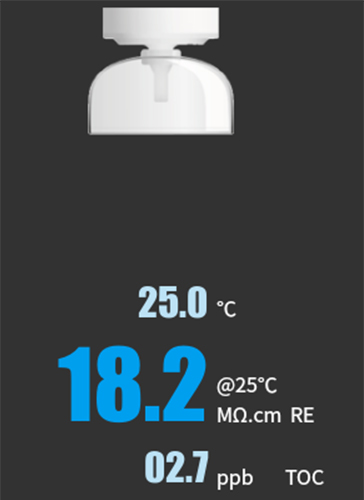

Comprehensive water quality monitoring and alarm

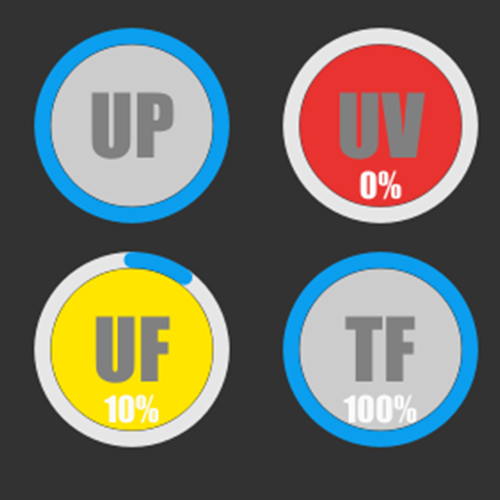

Perfect consumables management

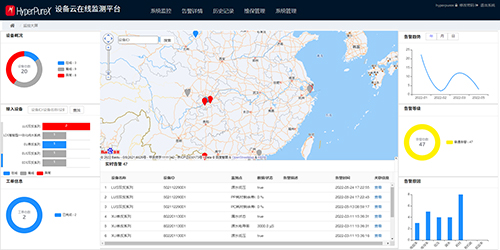

Innovative Internet of Things (IOT) and cloud platform technology



Flexible and diverse water dispensing mode

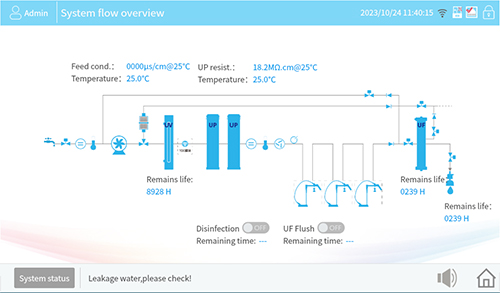

Powerful system overview diagram
Full security protection



System Configuration

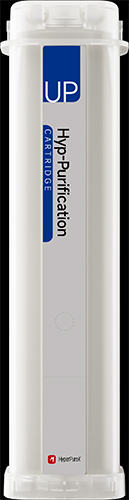

High performance purification cartridge
Double wavelength UV module

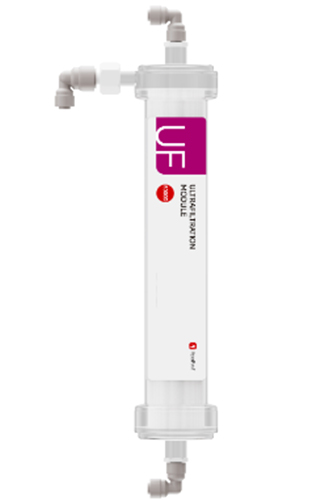

Ultrafiltration module

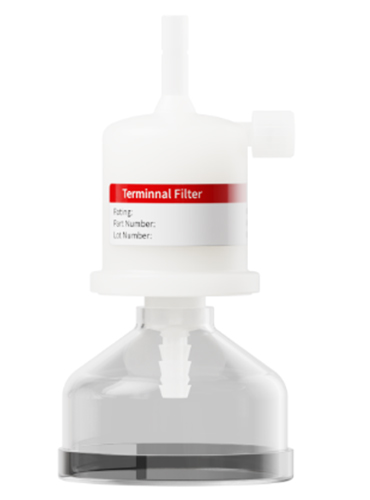

MF terminal microfilter

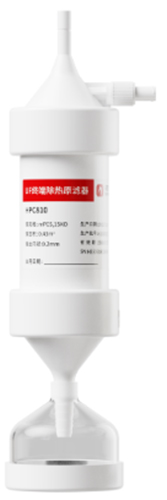

UF terminal ultrafilter

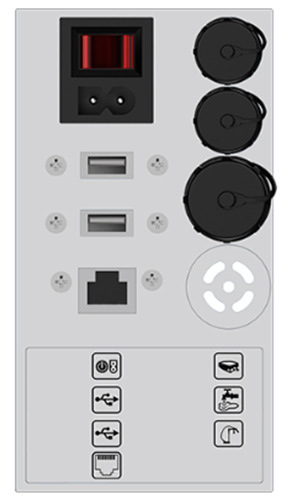

Multiple communication interfaces



Specifications

Name Model Standard PU Low TOC PU-UV Eliminating endotoxin PU-UF Synthesizing PU-UVF
Production rate Up to 2 liters/minute Up to 2 liters/minute Up to 2 liters/minute Up to 2 liters/minute
Ultrapure water quality
Resistivity(25℃) 18.2 MΩ.cm 18.2 MΩ.cm 18.2 MΩ.cm 18.2 MΩ.cm
Conductivity(25℃) 0.055 μs/cm 0.055 μs/cm 0.055 μs/cm 0.055 μs/cm
TOC 5 ppb 2 ppb 5 ppb 2 ppb
Particles <1 /ml (>0.2μm) <1 /ml (>0.2μm) <1 /ml (>0.2μm) <1 /ml (>0.2μm)
Bacteria <0.01 CFU/ml <0.01 CFU/ml <0.01 CFU/ml <0.01 CFU/ml
Endotoxin N/A N/A <0.001 EU/ml <0.001 EU/ml
RNases N/A N/A 1 pg/ml 1 pg/ml
DNases N/A N/A 5 pg/ml 5 pg/ml
Protease N/A N/A 0.15 μg/ml 0.15 μg/ml
Water source type
Water source type Purified water treated by RO/DI/EDI or distillation technology
Pressure 0-6 bar 0-6 bar 0-6 bar 0-6 bar
Temperature 5-40 ℃ 5-40 ℃ 5-40 ℃ 5-40 ℃
Conductivity <100 μs/cm <100 μs/cm <100 μs/cm <100 μs/cm
TOC <50 ppb <50 ppb <50 ppb <50 ppb
Power supply 100-240V, 50/60Hz 100-240V, 50/60Hz 100-240V, 50/60Hz 100-240V, 50/60Hz
Total Power 72W 72W 72W 72W
Dimension (L×W×H) Main host: 276×319×570mm Dispenser arm: 181×626×795mm

Main host: 276×319×570mm

Dispenser arm: 181×626×795mm

Main host: 276×319×570mm

Dispenser arm: 181×626×795mm

Main host: 276×319×570mm

Dispenser arm: 181×626×795mm

Weight

Main host: about 15KG

Dispenser arm: about 4KG

Main host: about 15KG

Dispenser arm: about 4KG

Main host: about 15KG

Dispenser arm: about 4KG

Main host: about 15KG

Dispenser arm: about 4KG

Standard configuration

Main host 1 set

All cartridges 1 set

HiDis dispenser arm 1 set

Main host 1 set

All cartridges 1 set

HiDis dispenser arm 1 set

Main host 1 set

All cartridges 1 set

HiDis dispenser arm 1 set

Main host 1 set

All cartridges 1 set

HiDis dispenser arm 1 set

[1].Affected by inlet water quality, pressure, temperature and status of RO membrane [2].Affected by the tank status and terminal filter
[3].The following values are typical and may vary depending on the nature and concentration of feed water contaminants [4]. According to USP requirements, the resistivity can be displayed as a non-temperature-compensated value
[5].Affected by the type of organics [6].Inlet TOC<1000ppb, follow professional operating procedures and correct sampling conditions
[7].Inlet TOC<50ppb, follow professional operating procedures and correct sampling conditions [8].Equip with terminal microfilter and follow professional operating procedures and correct sampling conditions
[9].Equip with terminal microfilter and follow professional operating procedures and correct sampling conditions [10].Equip with terminal microfilter and follow professional operating procedures and correct sampling conditions
